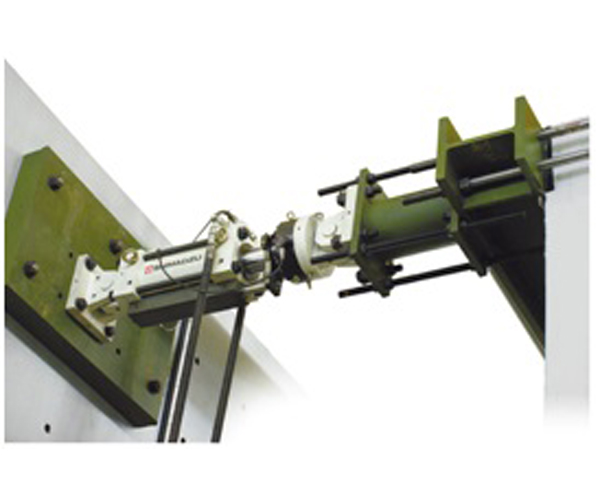

Jack Systems EHF-J Series
High capacity hydraulic actuator for full scale testing and evaluating large samples. The Jack systems are used to test strength characteristics by attaching the actuator to a test floor in a strong room, to a reaction wall, to a base plate (made of steel) or a testing frame, and then applying loads to samples in a specified mode. Two types of jack systems are available, either dynamic or static, based on the test objectives.

Capacity range: 100kN to 1000kN

Dynamic testing jacks are designed with low friction to maximise endurance
Multiple Jack systems can be customised and controlled by applying loads in any XYZ direction
The Jacks can be installed on the cross beam testing frame and used as a testing machine for structural menbers
