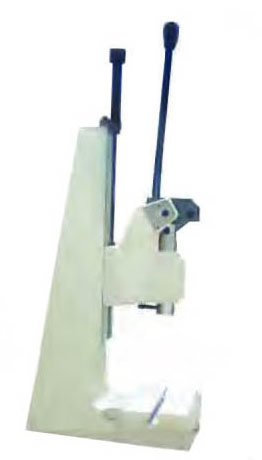

⚙️ RT800 – Long-Stroke High-Force Press Machine
Extended machining capabilities – Ideal for complex and large workpieces
With an extra-long stroke combined with powerful pressing force, the RT800 delivers outstanding performance in handling large-scale components, deep forming tasks, and precision-critical operations.
🔹 Key Features
- High thrust of 7.8 kN supports demanding applications
- Long stroke enables deep forming for oversized or intricate parts
- Reliable operation with precision alignment
- Designed for versatility across various manufacturing needs
⚙️ Technical Specifications
- Maximum Pressing Force: 7.8 kN
- Stroke Length: 60 mm (Max)
- Head Movement Height: 95 – 350 mm
- Spindle Depth: 105 mm
- Base Plate Size: 180 × 120 mm²
- Machine Height: 540 mm
- Inner Depth of Base Support: 290 mm
- Machine Weight: 32 kg
- Full-Stroke Handle Rotation Angle: 90°
⚠️ Note: Upper die weight must be limited to 2 kg when mounted onto the ram. Exceeding this threshold may cause the ram to drop unexpectedly, risking damage and shortening machine lifespan.
