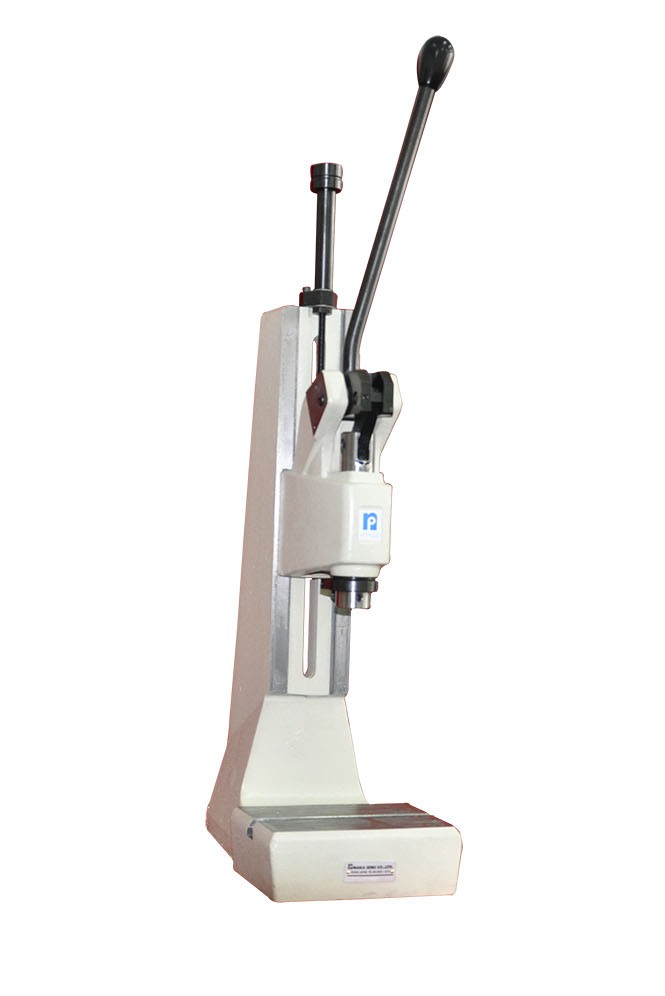

⚙️ RT820 – Compact Force, Exceptional Efficiency
Optimized for complex operations – Powerful press force in a compact body
The RT820 combines a high press force of 9.8 kN with a robust, space-saving design to deliver superior performance in intricate machining tasks. Ideal for medium-to-large components requiring long stroke and deep forming, it’s built tough and engineered for convenience.
🔹 Key Highlights
- 💪 High Performance: Handles complex forming jobs with force up to 9.8 kN
- 🛠️ Rigid & Durable: Made from premium-grade materials for long-term reliability
- ⚙️ User-Friendly: Easy die mounting, quick adjustments, and straightforward maintenance
- 📏 Compact Build: Lightweight footprint suits diverse workspaces
- 🧩 Flexible Application: Perfect for medium and large parts with extended stroke needs
⚙️ Technical Specifications
- Maximum Pressing Force: 9.8 kN
- Stroke Length: 40 mm (Max)
- Head Movement Height: 85 – 340 mm
- Spindle Depth: 105 mm
- Base Plate Size: 180 × 120 mm²
- Machine Height: 540 mm
- Inner Depth of Base Support: 290 mm
- Machine Weight: 32 kg
- Full-Stroke Handle Rotation Angle: 90°
⚠️ Important Notice: When installing upper dies onto the ram, limit the die weight to 2 kg. Exceeding this may cause the ram to fall unexpectedly, potentially damaging the machine and affecting its lifespan.
