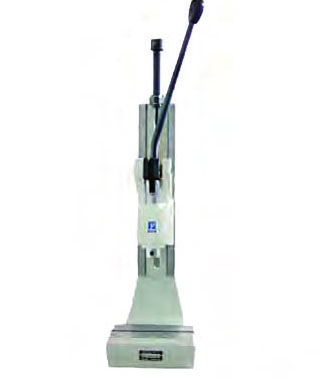

⚙️ RT840 – High Force, Optimized Performance
💥 Strong Pressing Power – 🎯 High Efficiency – 🧩 Compact Engineering
The RT840 is your ideal solution for processing medium and large components that demand precise stroke control and powerful forming force. With its compact design and robust build, the RT840 boosts productivity while conserving valuable workspace.
🔹 Product Highlights
- 💪 Powerful Compression: Delivers an impressive pressing force of 14 kN for challenging applications
- 🧱 Compact but Strong: Engineered for strength, stability, and long-term reliability
- ⚙️ Optimal Efficiency: Maintains high output while reducing footprint
- 🧩 Flexible Machining: Perfect for deep forming and precision tasks
⚙️ Technical Specifications
| Maximum Press Force | 14 kN |
| Stroke Length (Max) | 20 mm |
| Head Movement Height | 78 – 333 mm |
| Spindle Depth | 105 mm |
| Base Plate Size | 180 × 120 mm² |
| Machine Height | 540 mm |
| Inner Depth of Base Support | 290 mm |
| Machine Weight | 32 kg |
| Handle Rotation Angle | 90° |
⚠️ Note: When mounting the upper die on the ram, the die weight must not exceed 2 kg. Overloading may trigger a fall in the ram, potentially damaging the unit and shortening its service life.
