🛠️ Impact Press SP Series – Spring-Driven Press Machine

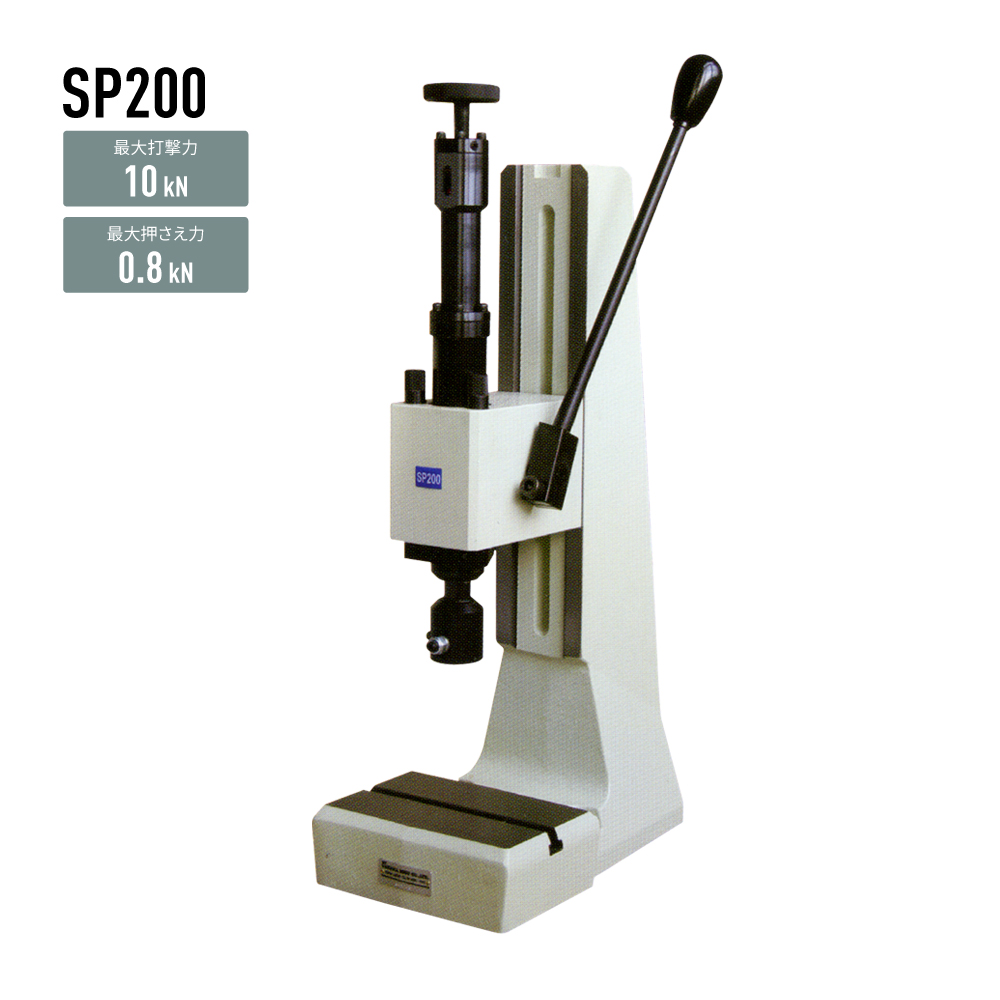

The SP-200 model in the SP series utilizes internal spring impact force, making it ideal for tasks like stamping and riveting. With a compact design and simple mechanical operation, this device delivers high performance without requiring electricity or a complex hydraulic system.
🔧 Key Features:
- ✨ Spring-Driven Mechanism
→ Uses elastic force to generate strong and stable pressing action.
- 🔩 Ideal for stamping and riveting applications
→ The SP-101 model offers a perfect solution for light-duty tasks.
- 🔋 SP-200 – Upgraded version with higher power
→ Enhanced spring force to handle harder materials or deeper pressing requirements.
📐 Technical Specifications (SP-200):
- Maximum pressing force: 10 kN
- Press stroke: 49 mm
- Maximum clamping force: 0.8 kN
- Workpiece height: from 10 to 270 mm
- Machine frame height: 540 mm
- Shaft hole diameter and depth: φ22H7 × depth 31 mm
- Table size: 180 × 120 mm
- Table height: 60 mm
- Overhang: 105 mm
- Mounting dimensions: 180 × [unspecified] mm
- Machine weight: 33 kg
🎯 Impact Press SP Series – A compact, high-performance pressing solution for precision tasks.
