🛠️ Impact Press SP Series – Spring-Driven Press Machine

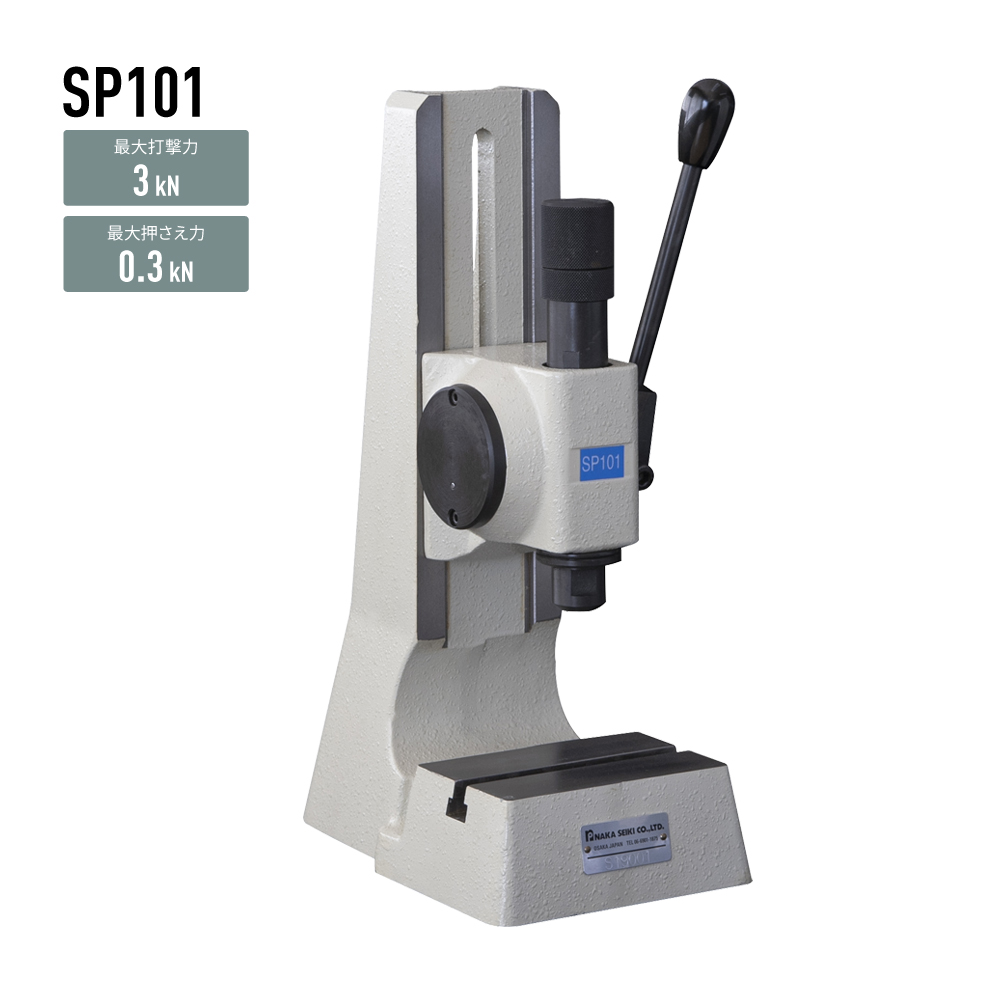

The SP-101 model in the SP Series utilizes internal spring-driven impact force, making it ideal for stamping and riveting tasks. With a compact design and a straightforward mechanical operating principle, this device provides high efficiency without the need for electricity or a complex hydraulic system.
🔧 Key Features:
- ✨ Spring-Based Mechanism
→ Uses spring elasticity to deliver strong and stable pressing force.
- 🔩 Suitable for Stamping and Riveting
→ The SP-101 model is an ideal solution for light-duty applications.
- 🔋 SP-200 – High-Power Upgraded Version
→ Enhanced spring force designed to handle harder materials or deeper pressing requirements.
📐 Technical Specifications (SP-101):
- Maximum pressing force: 3 kN
- Press stroke: 40 mm
- Maximum clamping force: 0.3 kN
- Workpiece height: 70 to 200 mm
- Machine frame height: 360 mm
- Shaft hole diameter and depth: φ10H7 × depth 12 mm
- Table dimensions: 120 × 80 mm
- Table height: 56 mm
- Overhang: 75 mm
- Mounting dimensions: 140 × 225 mm
- Machine weight: 18 kg
🎯 Impact Press SP Series – A compact, high-efficiency solution for precision pressing operations.
