🔩 BalTec RNE – Powerful Forming Solution for Automated Assembly
The BalTec Radial Riveting Unit RNE is engineered for seamless integration into automated assembly lines, offering exceptional flexibility when paired with specialized machines, rotary index tables, transfer systems, and other industrial equipment.
👉 With a wide range of sizes and configurations, users can select the ideal model for specific materials and machining processes.

✨ Key Advantages
- ⚙️ Easy Integration
Compatible with various automation systems and precision mechanical setups.
- 🛠️ Pneumatic or Hydraulic Pressure Options
Enables precise control of forming force for different applications.
- 🌐 Versatile Applications
Suitable for mass production and challenging materials like die-cast aluminum.
- 🎯 Wide Range of Rivet Sizes, Pressing Forces, and Stroke Lengths
- Ideal for coated, brittle, or delicate materials.

📊 Technical Specifications
| Model | Max Rivet Diameter | Forming Force (kN) | Stroke (mm) | Air Pressure (bar) | Hydraulic Pressure (bar) | Weight (kg) |
| RNE081 | φ4 | 0.8–2.4 | 2–25 | 2–6 | – | 20 |
| RNE181 | φ6 | 1.8–6.6 | 5–30 | 2–6 | – | 30 |
| RNE281 | φ12 | 5.8–17 | 5–40 | 2–6 | – | 60 |
| RNE381 | φ20 | 6.0–40 | 5–50 | – | 10–65 | 80 |

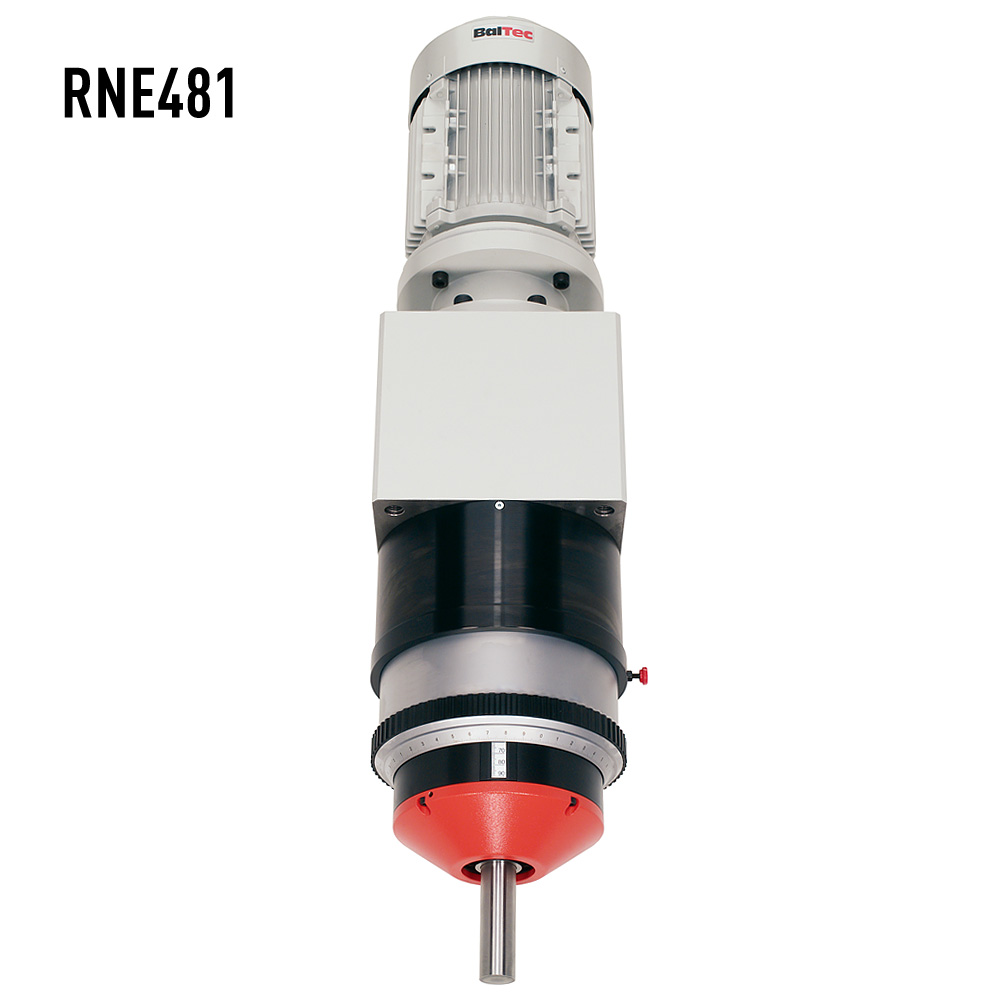

| RNE481 | φ30 | 15–100 | 5–90 | – | 145 | 180 |

💡 All models are optimized for integration with side-mounted motors, machining stations, rotary tables, multi-axis systems, and automated control platforms.
🧠 Expandable System Compatibility
BalTec RNE supports a wide range of equipment, including:
- ✅ CNC machining stations & workstations
- ✅ Rotary index tables
- ✅ MRX multi-axis adapters
- ✅ RNS or RNL vertical stands
- ✅ RND dual-sided forming units
- ✅ RNC digital control systems (custom consultation available)

🌸 BalTec – Precision in Every Stroke, Power in Every Radial Motion
Choose the right RNE model to take your production line to the next level.
