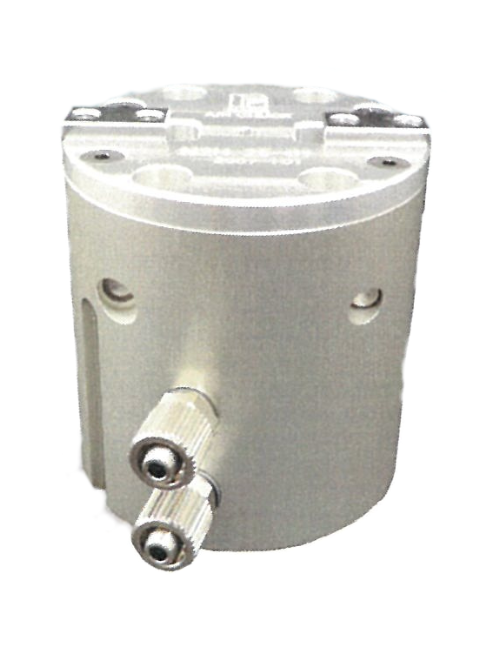

🔩 N2H-25-01 – Precision Pneumatic Air Chuck
Compact. Accurate. Easy to Integrate.
The N2H-25-01 pneumatic chuck is designed to securely hold workpieces during machining, inspection, or assembly. With its compact form, high repeatability, and stable clamping force, it enhances operational efficiency and product quality across various industrial applications.

⚙️ Key Features
- 📏 5 mm Jaw Stroke
→ Provides sufficient opening for standard components, compatible with various workpiece shapes.
- 🎯 Repeatability Accuracy: 0.06 mm
→ Ensures stable clamping and minimizes errors during machining or inspection.
- 🌬️ Operating Air Pressure: 0.2 to 0.7 MPa
→ Easily connects to standard pneumatic systems for quick setup and reliable operation.
- ⚖️ Lightweight – Only 340 g
→ Ideal for mounting on workstations, machine heads, or industrial robots without affecting motion dynamics.

🧰 Applications
- CNC machining requiring stable clamping
- Automated product inspection systems
- Integration into semi-automated assembly or testing equipment
- Compatible with modular machine designs, rotary tables, and pick & place robots

✨ N2H-25-01 – A compact, precise, and easily deployable clamping solution for any industrial workflow.
