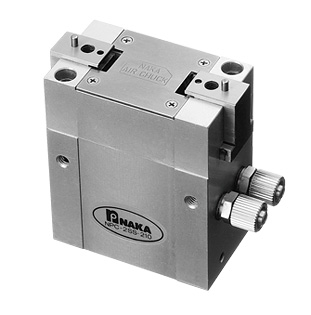

🔹 NPC-2SS-210 – 2-Inch Wedge Chuck
2 Fingers / Aluminum Body / 10 mm Stroke – Flexible Clamping for Small-Space Automation
The NPC-2SS-210 is a compact yet versatile pneumatic chuck designed for automated assembly and part transfer in space-constrained environments. With an extended 10 mm stroke, it accommodates a wider range of workpieces while maintaining precision and ease of integration.

⚙️ Typical Applications
✔️ Clamping during automated assembly processes
✔️ Transferring components in dynamic conveyor systems
✔️ Flexible gripping for varied part sizes thanks to long stroke

💡 Key Features
- 📦 Compact Body – 50 mm × 30 mm
→ Easily fits into tight machine layouts
- ↔️ Extended Stroke – 10 mm per Finger
→ Ideal for gripping diverse workpiece dimensions
- 🔄 Dual Side Air Ports
→ Simplifies pneumatic routing in system design
- ⚙️ 2-Finger Wedge Mechanism
- → Efficient, space-saving, and reliable

📊 Technical Specifications
| Specification | Value |
| Product Code | NPC-2SS-210 |
| Chuck Type | Wedge Type |
| Body Dimensions | 50 mm × 30 mm |
| Number of Fingers | 2 |
| Stroke per Finger | 10 mm |
| Repeatability | ±0.01 mm |
| Body Material | Aluminum (Al) |
| Operating Pressure | 0.15 – 0.6 MPa |
| Gripping Force (@0.1 MPa) | 40 N |
| Air Ports | Dual side ports |
| Top Mounting Screws | M3 × 2 |
| Bottom Mounting Screws | M4 × 2 |
| Bottom Mounting Hole | φ24 +0.05/0 × 1 mm |
| Weight | 290 g |
| Rotation Capability | Not applicable (stationary use) |

✅ Why Choose NPC-2SS-210?
- Compact yet powerful – Handles small parts with reliable force
- Flexible yet precise – 10 mm stroke and 10 μm repeatability for robotic systems
- Convenient and easy to install – Side air ports streamline machine layout

📌 NPC-2SS-210 – The ideal clamping solution for compact spaces and versatile applications.
