PE AUTOMATION CO., LTD.

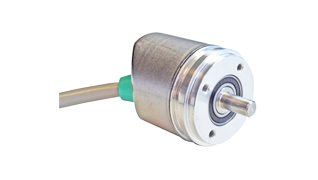

Incremental encoder 36mm High-Durability IP54 Specification

The Incremental encoder 36mm with high-durability IP54 specification is an optimal solution for industrial machinery requiring precise positioning and speed detection. Despite its compact design, it ensures stable performance even in harsh environments, contributing to higher equipment precision and reliability.

Main Specifications & Functions
- Outer diameter: 36 mm
- Shaft specification: Solid shaft 6 mm
- Flange size: 36 mm
- Pulse count: 1 - 16384 PPR
- Output type: Push-pull / Line-Driver
- Protection rating: IP54
- Cable length: 2 m

Features and Differentiators
The Incremental encoder 36mm offers a balance of environmental durability and high resolution. Supporting both Push-pull and Line-Driver outputs, it is highly compatible with various control systems, enabling flexible system design. Its compact form factor and robust dust and water protection allow long-term operation in actual production environments.
