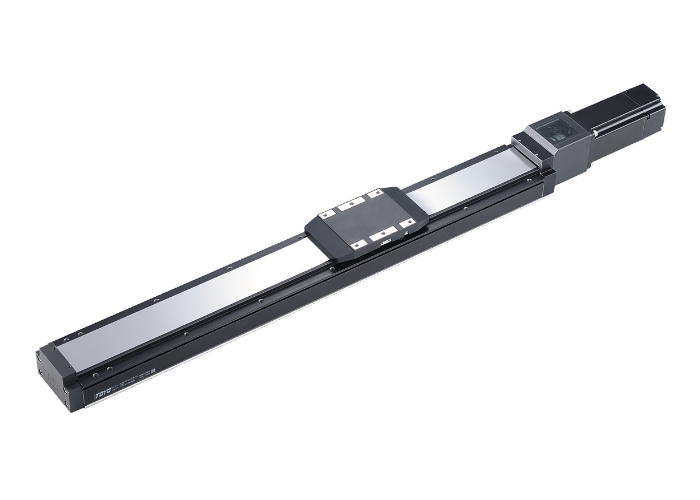

TOYO GLTH8 Linear Actuator Module is a representative product in the Linear Actuator Module category of TOYO Robot Corp. It is a flat-type actuator with built-in linear guideways and ball screw drive, designed to generate precise linear motion along the X, Y, and Z axes in automated machines.

In industrial automation systems, linear actuator modules play an important role in moving components, fixtures, grippers, slide tables, inspection devices, or working units to the correct position. If the sliding mechanism lacks accuracy, rigidity, or stable repeatability, the production line may face positioning errors, vibration, reduced operating speed, or product quality issues. Therefore, TOYO GLTH8 is a suitable solution for businesses that need a compact, precise, and easy-to-integrate linear motion module.

Key Product Features

The strength of TOYO GLTH8 lies in its flat design with built-in linear guideways, helping save installation space while maintaining stable motion. It is suitable for compact machines, low-profile structures, and applications requiring accurate movement in limited spaces.

The product uses a ball screw drive mechanism, making it suitable for applications that require high precision, reliable positioning, and stable repeatability. Its modular structure allows machine builders to install it easily or combine it with other axes to create Cartesian robots or multi-axis motion systems.

Applicable Industries

TOYO GLTH8 Linear Actuator Module is widely used in electronics, semiconductors, precision machinery, automotive components, medical devices, industrial packaging, automatic machine building, and system integration. It is suitable for component assembly machines, inspection equipment, feeding systems, pick-and-place systems, positioning units, packaging machines, and multi-axis automation systems.

Technology and Product Applications

TOYO GLTH8 is commonly used in automatic pick-and-place machines, electrical and electronic assembly machines, camera or sensor inspection systems, feeding and positioning machines, dispensing or coating equipment, automatic screw tightening, soldering machines, packaging lines, sorting systems, Cartesian robot systems, and compact automation equipment.

The product helps create precise linear movement along the X, Y, or Z axis, move components to the correct working position, position fixtures or grippers, support assembly and inspection processes, reduce errors in repetitive operations, increase machine speed, and improve production line stability.

In terms of technology, GLTH8 is based on linear motion technology and combines ball screw drive, linear guideways, integrated slide table, flat module body, drive motor, motion controller, stroke or position sensors, and connection with PLC or automation control systems.

Structure and Main Components

TOYO GLTH8 usually includes a flat module body, built-in linear guideways, moving slide table, ball screw drive, support unit, guide mechanism, drive motor, motor connection unit, optional limit sensors, mounting position for fixtures or working heads, and a controller compatible with automation systems.

Depending on requirements, users can select the product by stroke, load capacity, speed, accuracy, mounting method, motor type, and control method.

Benefits for Manufacturing Businesses

Using TOYO GLTH8 helps manufacturers improve movement accuracy, reduce repetitive motion errors, and enhance the stability of automated machines. For mass production lines, it helps reduce positioning errors, limit vibration, optimize operating speed, and minimize downtime.

Its modular design also helps machine builders and system integrators shorten design time, reduce separate mechanical machining work, and standardize machine configurations. When combined with TOYO Cartesian robots, electric grippers, electric cylinders, and controllers, GLTH8 can become part of a synchronized automation system for multiple production processes.

TOYO GLTH8 Linear Actuator Module is a suitable choice for manufacturers, machine builders, and system integrators that need a compact, precise, easy-to-install, and flexible linear motion solution for modern automation systems.
