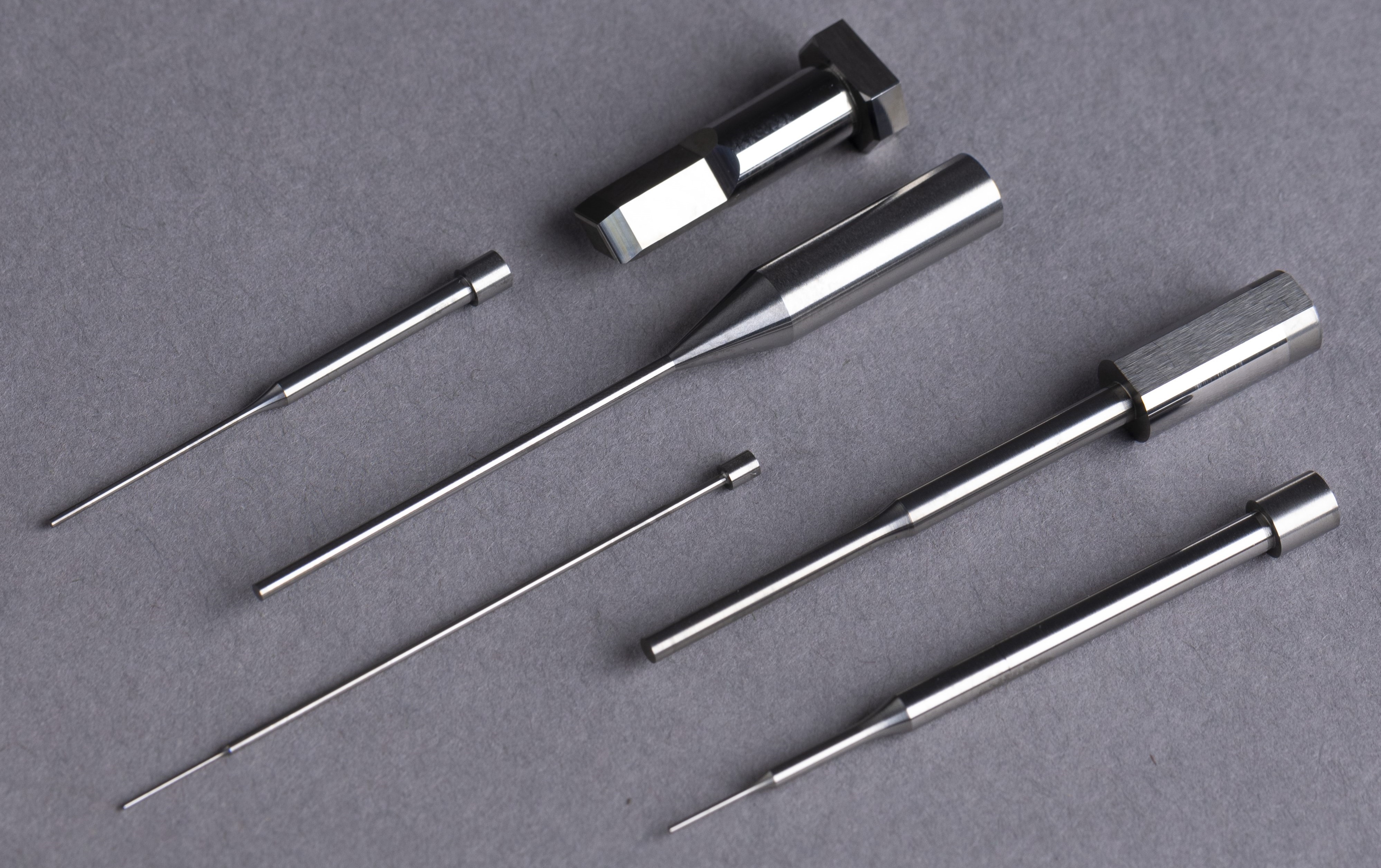

These products are used in press dies as pilot pins, guide pins, and locating pins. They are installed and positioned for purposes such as preventing deviations in the pitch of holes in products and material removal holes.
In a case where these products are to be used in dies and equipment which are required to be highly corrosion resistant and nonmagnetic, we propose the use of zirconia ceramics.

【Specifications】.
Material: Cemented carbide, zirconia ceramics, SKH51
Standard
・Made to order in desired sizes
・Multi-stage shapes and LAP (lap) finishing are also available.

Dimensions and Standards
Outer diameter (φd): φ0.01 to φ20
Overall length (L): up to 240L

*******************************************
