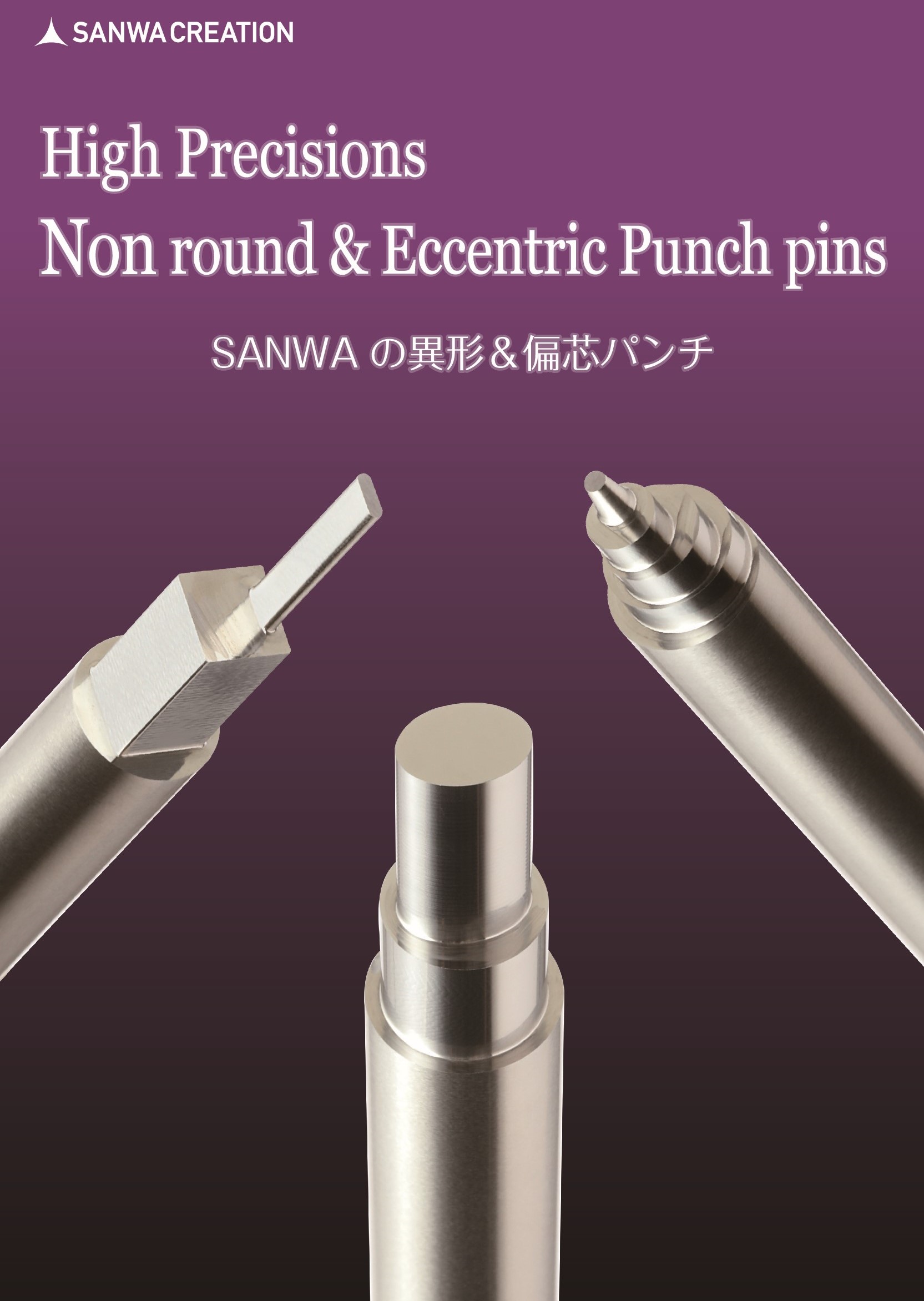

These irregular and eccentric pins are made using our company's original construction methods.
We can meet needs for a variety of eccentric shapes, such as ellipses, squares, and everything from triangles to multi angle shapes.
In addition to being used for core pins of molds and pilot pins for pressing dies, the triangle type can be used as a reamer.
Also, we can manufacture punches that have eccentricity from the shank to the tip for the purpose of effective use of the space in the interior of dies through the miniaturization of dies.

Specifications】.
Material: Cemented carbide, zirconia ceramics, SKH
Standard: Made to order in desired size
Dimension standard
・Shank diameter: φ2 to φ12
・Total length (L): ~150L

Sanwa Creation Corporation
1-26-8 Miyauchi, Nakahara-ku, Kawasaki-shi, Kanagawa, 211-0051, Japan
TEL:+81-44-740-6800(Representative)
FAX:+81-44-740-6801

Related URL: https://www.sanwa-creation.co.jp/products/kanagata/
