ThreeHigh Co., Ltd.
Most recent update: 2024-01-16
Established: 1990 Representative Director: Makoto Ozawa Employees: 40 Business description: Manufacture and sale of industrial electric heaters, temperature controllers, temperature sensors, and heat insulating materials
PR message
Solving with the power of heat!
～Heat retention, heat insulation, heating～
Leave your troubles to a heat professional!
https://threehigh.hp.peraichi.com/
As a company that specializes in the manufacture of silicon rubber heaters that can be made to order from one point, we will continue to engage in highly specialized work in 3, 5, and 10 years.
You can have a meeting at the stylish showroom "DEN"★https://www.threehigh.co.jp/den/

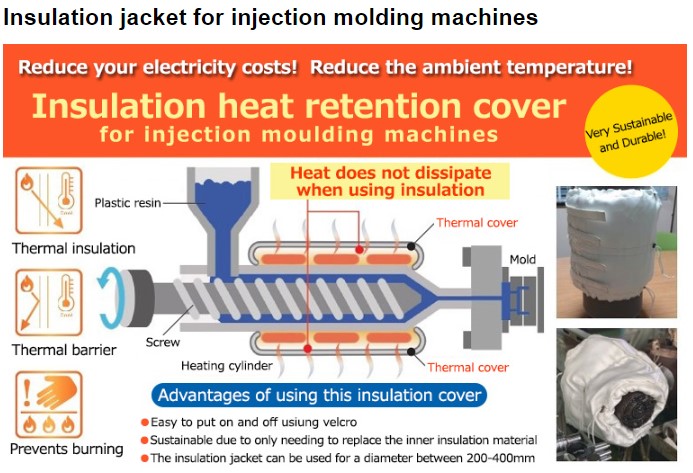

<Introduction of “insulation jacket for injection molding machine”>
What is insulation material for injection molding machine?
It is a heat insulating material that uses glass wool cotton of about 10 mm per sheet, and by using two layers, he reproduces a thickness of 20 mm. A thermal insulation jacket cover that is wrapped around for heat insulation and heat retention.
In addition, it is also possible to increase the thickness to 3 or 4 according to the site.
●Saving heater electricity bill!
●For heatstroke prevention and power saving of air conditioners for employees in summer!
We would like to introduce the 3-high original insulation jacket that we have developed.
●The heat insulation effect also helps prevent burns.
[This is the point! ]
POINT 1
A 3-piece set of 2 layers of insulation + cover jacket, and you can replace each of the 2 layers of insulation separately! The inner insulation is easily damaged, but you can replace only one of them, so it is very sustainable!
POINT 2
The size is compatible with diameters from Φ200 to Φ400★Uses a cord stopper★
POINT3
Insulation prevents heat from escaping, so you can significantly reduce your electricity bill!

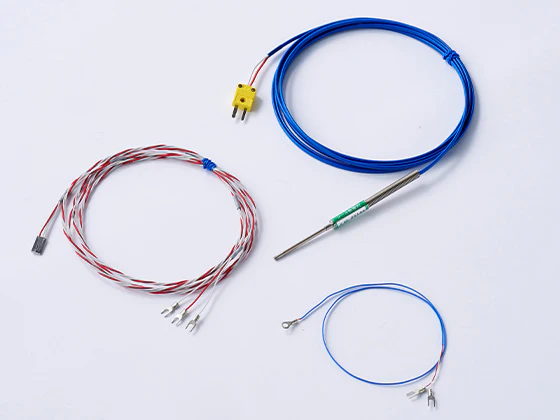

【Temperature Sensor (Thermocouple Type K)】
A temperature sensor is a device used to measure the temperature of objects, spaces, etc. It transmits the measured information to temperature controllers, data loggers, and other devices for applications such as heater temperature control and temperature data collection.
As it is a K-type thermocouple, it is compatible with commercially available temperature controllers if the type matches. For those without a suitable type or temperature controller, you can also purchase the Three High original digital temperature controller, monoOne®.
When selecting a temperature sensor, consider choosing one with a shape that allows for a large contact area with the object being measured, and one that is suitable for your operating environment.
～Lineup～
Duplex (Tip Welding) Type
Sheath Type
Sheet Type
Stick Type
Screw-fastened Stick Type
Mold Type
Ultra-fine Type
Protective Tube Type

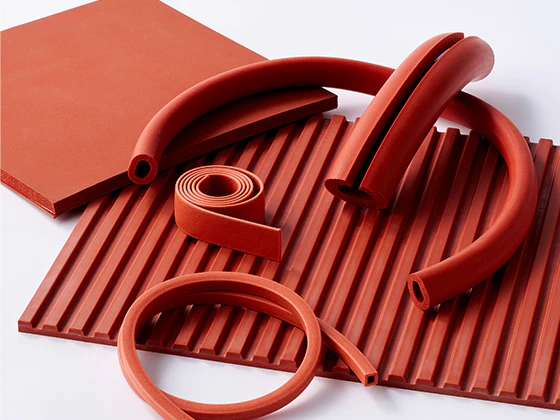

【Silicone Sponge】
Silicone sponge is a distinctive material known for its excellent heat resistance and insulation properties. It finds applications in a wide range of uses, including thermal insulation, heat preservation, frost prevention, and heat-resistant cushioning.
Typically, it can withstand temperatures up to 200°C, depending on the degree of compression. Some variants also come with double-sided adhesive tape for easy application.
【Common Applications】
Thermal insulation
Heat preservation
Frost prevention
Heat-resistant cushioning
■Curious about silicone sponge in a nutshell? Check out our video channel: "Understanding Silicone Sponge in 3 Minutes."
https://youtu.be/ym0VnnxuaP4
【Digital Temperature Controller monoOne-120 / デジタル温度コントローラ monoOne®-120(モノワン®120)】
【Compact and Sturdy Body. Simultaneously Monitor Heater and Heated Object Temperatures with Overheating Prevention Feature.】
Product Features:
【Overview】
Simple! Safe! And compact! With just one touch, from power on/off to temperature settings! This high-function compact type temperature controller is easy to use for beginners to professionals. Available for purchase from a single unit.
【Standard Equipment】
Monitor Function
Manage the temperature of the heater while simultaneously measuring the temperature of the heated object (monitor function). By monitoring both temperatures at the same time, it ensures more precise temperature control. You can use it with confidence even if the heating points are far apart.
<Error Function>
In case of unforeseen issues such as heater disconnection (*), sensor disconnection, etc., use the error port with a buzzer, rotating light, etc., to achieve a safe work environment.
*(*Note: Parameter settings need to be configured in advance.)
【Optional Equipment】
Timer Function
Set the time to turn on and off at intervals of 1 minute, with a maximum of 100 hours. This eliminates the need for unnecessary effort.
Designed with Consideration for DIN Rails
It also supports DIN rails, ensuring worry-free installation on control panels.
＜Video Channel＞
★【Digital Temperature Controller - monoOne-120】Specifications Introduction
https://youtu.be/eL4vdjEyAss
★【Temperature Controller "monoOne-120" - Safety Feature Section: Overheating Prevention Settings】
https://youtu.be/WT-l4yzl4ys
★【Temperature Controller "monoOne-120" - Wiring Instructions】
https://youtu.be/1BFVmNX_udU
★【Temperature Controller "monoOne-120" - Practical Guide Part 1: Temperature Setting】
https://youtu.be/a7Xw0pVUx3w
★【Temperature Controller "monoOne-120" - Handy Features Part 2: Temperature Monitoring】
https://youtu.be/sRAEmKNPP_Q
 |
Silicon rubber（ Mass production / Rubber ） |
|---|
| Company name | ThreeHigh Co., Ltd. | Website URL | https://www.threehigh.com/ |
|---|---|---|---|
| Street address |
Yokohama, Tsuzuki-ku Kanagawa Japan
[See map] |
Person in charge | 齋藤 恭子 |
| Telephone number | +81-45-590-5561 | Fax number | +81-45-590-5571 |
| Capital | 30,000,000 JPY | Employees | 42 |
| Annual sales | EMIDAS Member Number | 76023 | |
| Type of manufacturing | Machine tools / Measuring machinery / Industrial machinery | ||
| Main 3 products |
|
||
| Large | Medium | Small |
|---|---|---|
| Designing | Electrical planning | Electrical machinery and apparatus designing |
| Mass production | Rubber | Rubber product prototype manufacturing Silicon rubber Press stamping |
| Product manufacturing | Production property | Other industrial machinery manufacturing |
| Product manufacturing | Plant equipment manufacturing | Plant equipment manufacturing |
