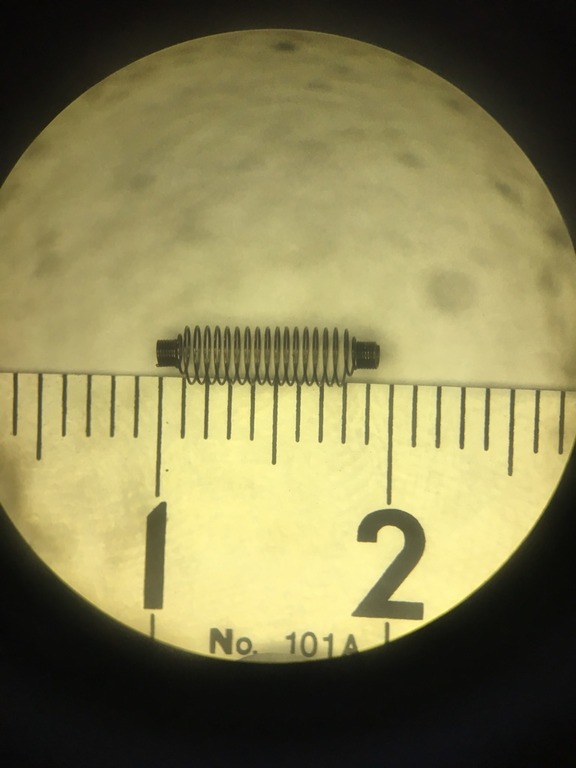

This is a compression coil spring (fine item) used for machine tools.

Wire diameter: φ0.12mm
Outer diameter at both ends: φ1.2 mm
Central outer diameter: φ2.55mm
Free length: 9.4mm
Total number of turns: 32.5 turns
Effective number of turns: 20.5 turns
Each seat: 6 turns
Load value: 6.3 gt at 4 mm
Processing machine: SH-3

With fine processing machine, we can handle products with wire diameters of φ0.03 to 0.3. (If it is φ0.1 or less, please contact us.)
The material can be piano wire, stainless steel, steel wire, etc.
We will respond as much as possible regarding the shape (cone, irregular shape, etc.), working load, and number of lots. Please contact us.

We handle integrated production from mold design and production to press processing at our company (compatible with home appliances / light electrical parts) and semi-assembly products.

In addition, we can supply parts globally and provide high quality support from our own factories in Malaysia, China and Vietnam.

Mizuho Spring Seisakusho Co., Ltd.
5-80 Urasato, Midori-ku, Nagoya shi
TEL 052-624-2031
FAX 052-621-2291
