PR message
Drawing is a process that uses a mold at room temperature to stretch the material so as to reduce the cross-sectional area and improve dimensional accuracy. At our company, we carry out integrated production from "drawing → heat treatment → cutting / grinding → inspection". We are building a system. We have achieved Japanese level quality and delivery time.

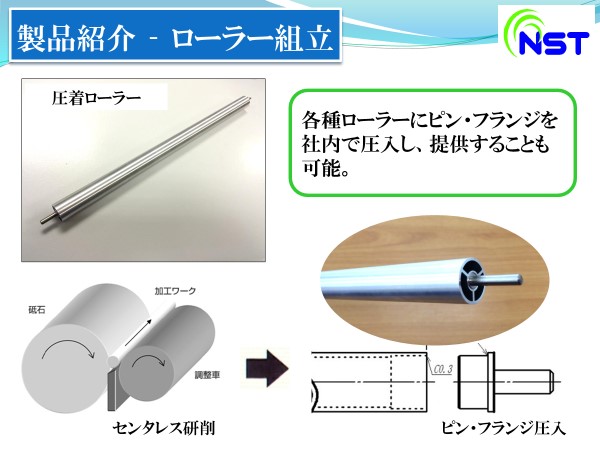

We also perform assembly with other parts, such as press-fitting and caulking, in-house.
Press-fit assembly of copy machine rollers, handle grip press-fit, assembly with plastic parts, etc.
It is also possible to assemble our aluminum parts and other parts.
In particular, "rollers for copy machines" can be assembled with high precision.
We can also manufacture drawn hexagonal bars and square bars.
By using a hexagonal bar with excellent dimensional accuracy, aluminum bolts, etc.
The yield of hexagonal parts can be greatly improved.
Other irregular shapes can also be produced at our Thailand factory.
Dimensions: Opposite side H12~H25
Dimensional accuracy: Opposite side ±0.03
Round bars for precision cutting and precision cold forging
In particular, runout (bending) can be controlled at 1mm/1000mm.
It can be used without problems on CNC lathes with auto bar feeder (automatic bar feeder) specifications.
Manufacturable range: Φ15~30
(Can be manufactured up to Φ60 with JIS special grade precision)
Manufacturable dimensional tolerance: Outer diameter: ±0.05mm Runout: 0.5mm/M (actual value)
Copy machine developing roller (sleeve)
By performing centerless grinding after drawing, it is possible to manufacture ultra-high precision sleeves.
It is also possible to perform spigot machining on both end faces with high precision.
*Grooving in the longitudinal direction is also available.
Processing: Drawing → End face cutting → Centerless polishing
Tolerance: Outer diameter ±0.005 Inner diameter ±0.01 Runout 15μm or less
The runout has been proven to be less than 8μm for A3 size (L330).
Drawing is a process that uses a mold at room temperature to stretch the material to reduce its cross-sectional area, improving dimensional accuracy.
Our precision cold drawing process allows us to process pipes with high precision.
In response to the demands of the times, such as thinner aluminum products and no machining, Nippon Shinkan continues to make continuous efforts to improve drawing technology to meet the diverse needs of aluminum products.
Manufacturable range: Outer diameter Φ12 to 150
Main applications: Various piping such as heat exchangers, OA equipment rollers, various shafts, motorcycle mufflers, single-lens reflex camera lens barrels, etc.
We are capable of integrated manufacturing of drawn pipes for cut photosensitive drums.
Material: 6000 series, 3000 series, 1000 series, etc.
Processing: Drawing → End face cutting
Tolerance: Outer diameter ±0.05 Inner diameter ±0.02 Runout 0.03 or less
We have a track record of delivering to major office machine manufacturers and photoconductor manufacturers.
Drawing is a process that uses a mold at room temperature to stretch the material to reduce its cross-sectional area, improving dimensional accuracy.
Our precision cold drawing process allows us to process pipes with high precision.
In response to the demands of the times, such as thinner aluminum products and no machining, Nippon Shinkan continues to make continuous efforts to improve drawing technology to meet the diverse needs of aluminum products.
Manufacturable range: Outer diameter Φ12 to 150
Main applications: Various piping such as heat exchangers, OA equipment rollers, various shafts, motorcycle mufflers, single-lens reflex camera lens barrels, etc.
| Company name | Nihon Shinkan (Thailand) Co., Ltd. | Website URL | http://www.fact-link.com/home/nihonshinkan |
|---|---|---|---|
| Street address |
No.13/3 Moo 3 Tambon Sambundid Amphur U-Thai Phra Nakhon Si Ayutthaya Kingdom of Thailand
[See map] |
Person in charge | |
| Telephone number | +66-35-200-980 | Fax number | +66-35-200-982 |
| Capital | 730,000 $ | Employees | 95 |
| Annual sales | 35,910,000 $ | EMIDAS Member Number | 92609 |
| Type of manufacturing | Office automation equipment / Transportation equipment | ||
| Main 3 products |
|
||
| Large | Medium | Small |
|---|---|---|
| Material | Steel component distribution | Drawn steel pipe |
| Material | Nonferrous metal distribution | Pipe material |
| Development and production of prototype/Small-scale production | Machining | Tube drawing |
