Fine grooving on free curved surfaces(simultaneous 6-axis 0.1 nano control)
Industry
Automobile (mass production)
Lighting equipment
Specifications
- Materials：Nickel
- Lots：1 - 100 lots
- Precision：1/1,000 mm or less
Conventional technologies/differences from other companies
Φ126 (100R)
Groove pitch accuracy: 1mm±0.5μm (groove depth 2.5μm)
Surface roughness: Ra52nm, Rz260nm

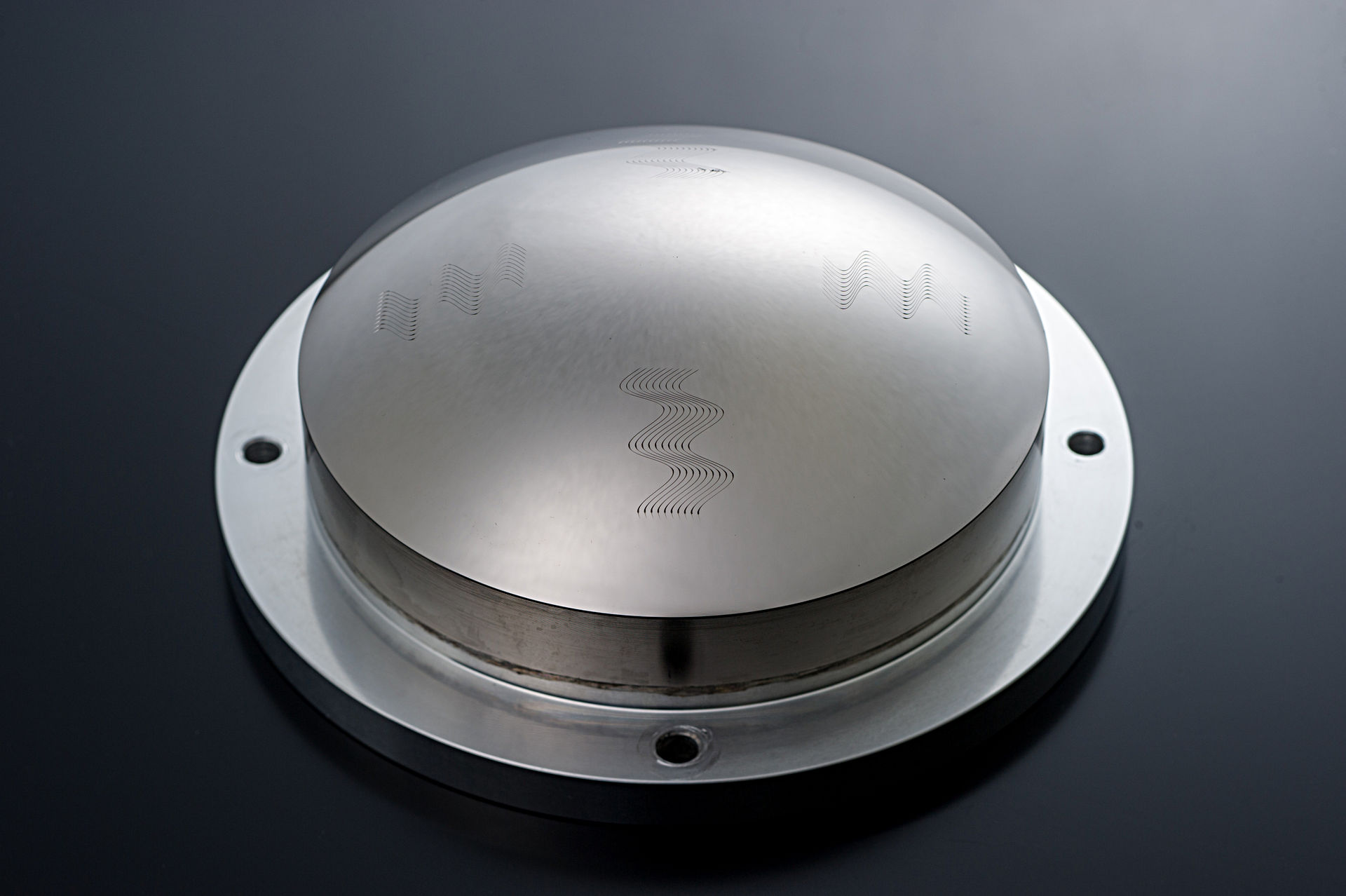

This is an example of simultaneous 6-axis grooving using a single-point diamond tool on a free-curved surface (non-symmetrical aspherical shape). High-precision grooving is possible not only on flat surfaces but also on free-curved surfaces.
