SANKYO WORKS (THAILAND) CO., LTD.
Most recent update: 2021-10-25
PR message
We provide the best service with the best solution and the best quality. Automation Technology Provider.
- Automation and power-saving equipment
- Precise positioners for factory automation
- Precise positioners for machine tools
- Peripheral devices for presses
- Various types of automated machines
►Ultra small, zero-backlash positioner
Ultra small speed positioner that eliminates backlash with its own adjustable preload on the roller gear cam and roller follower.
►Maintenance free
Since there is no deterioration in the precision of the internal parts due to aging, and the unit has excellent durability, there is no need for periodic calibration or adjustment.
►There is a wide range of motors to choose from
A wide range of servo and stepper motors can be installed. (Motors from various motor manufacturers can be used)
►Mounts in any position
The MR main housing can be mounted in any direction, allowing you to create various motions.

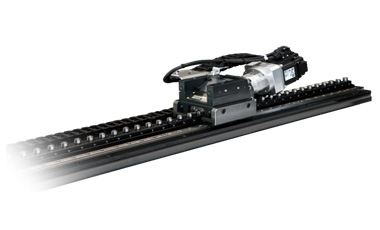

►Long stroke
The integrated drive and rail-guided motion unit solves the "rope jumping" effect caused by deflection in ball screws, and overcomes obstacles created by supports that are commonly used between rails to prevent deflection. Simply connect the rails for long stroke applications of 10 meters or longer (length is theoretically unlimited).
►High-speed
Suitable for high-speed motions of 200 m/min or more for drastically reduced moving times. The screw rotates perpendicular to the direction of travel, and has excellent acceleration and deceleration characteristics as well as small residual vibration during sudden stops, reducing system cycle times.
►High-power
A motor size of 0.75 kW can move a heavy 300-kg load over 4 meters in only 3.5 seconds.
►Excellent durability
Drive power is transmitted by rolling contact for minimal wear and prolonged initial accuracy.
Retains initial repeatability of ±4 μm with virtually no loss even after 10,000 km of travel.
(Repeatability measured after 10,000 km: ±5μm)
►Maintenance
In case of accidents such as unit collisions, the affected bearing or unit can be replaced separately, allowing quick and easy recovery of the entire system.
►Multi-axis control
Two or more Liner Units can be installed controlled separately on a single axis, allowing users to create diverse types of motion by combining linear and rotary movements.
►Small footprint
Inline drive and rail design uses 50% less space than other mechanisms.
| Company name | SANKYO WORKS (THAILAND) CO., LTD. | Website URL | https://www.sankyo-seisakusho.co.jp/english/index.html |
|---|---|---|---|
| Street address |
Klongnueng, Khlong Luang, Pathum Thani Kingdom of Thailand
[See map] |
Person in charge | Kawashima |
| Telephone number | +66-2-516-5355 | Fax number | +66-2-068-0931 |
| Capital | 25,000,000 THB | Employees | 8 |
| Annual sales | Unregister | EMIDAS Member Number | 96036 |
| Main 3 products |
|
||
