PR message
Contracted Impregnation, manufacture and sales of impregnation sealant, manufacture and sale of impregnation equipment, development of impregnation sealant and impregnation technology.

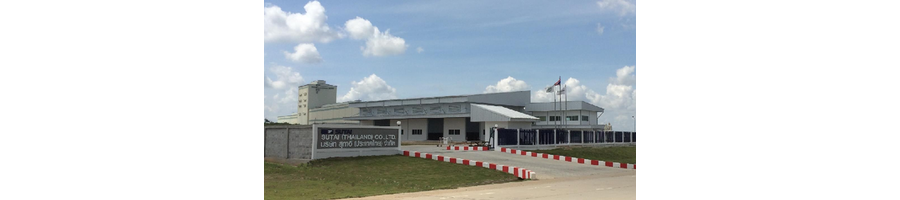

SUTAI THAILAND was established in 2013 at WHA Eastern Seaboard Industrial Park 1 in Rayong Province, Thailand.
Mainly applied to automobile parts, it is applied to various fields such as motorcycles, outboard motors, agricultural equipment, heavy machinery, and wire harnesses.
The products of impregnated will enable it to grant a variety of characteristics.
Provides pressure resistance and air-tightness
Provides corrosion resistance
Pretreatment before chemical treatment
Improves cutting operations
Improves physical strength
Improves insulation resistance
■Vacuum
Products are placed in a large impregnation tank. Air is extracted from the impregnation tank to create a favourable environment for the impregnation solution to permeate 'porosity'.
■Filling Impregnation solution
Impregnation solution is injected into the impregnation tank and extra air compression applied. As a result, the impregnation solution thoroughly permeates the microscopic 'porosity'.
■Heat Curing
After cleaning, with the impregnation solution still filling the microscopic 'porosity', heat curing takes place to complete the impregnation process.
■Finish
Airtightness is improved in products that have been through this impregnation process, removing worries of air, oil, gas or water leakage. Strength is also enhanced, meaning that they can also be used, for example, in applications to improve cutting accuracy or to prevent blisters forming after coating/plating treatments.
At SUTAI we are proud of the high quality finish achieved by our impregnation technology. We are committed to providing a system of warranty for finished machined products, including pressure tests and the like, that is second to none.
[Photo left: Before impregnation] Air is leaking from the cavities.
[Photo right: After impregnation] Airtightness is improved and leakage is improved.
We realized to reduce Significant production cost because of using impregnation. We can use valuable good that as dispose or recasting as defective goods.
Let's suppose that instead of impregnation of the metal, recasting was performed. The necessary expenses would include recasting costs, labor costs, processing costs, flow costs, and management costs. Thus performing impregnation reduces the total cost and eliminates the time wasted in recasting.
Special features
1. 100% reactive curing type
100% reactive cure, facilitating perfect sealing.
2. Possible to wash parts with water
Since washing can be done with water, the Labor Safety and Sanitation Law does not apply. There is no need to use CFCs or organic solvents etc. in washing.
3. Easy to use
The liquid is extremely stable, making it easy to handle and control.
4. Can be used on a wide range of materials
Starting with aluminum, can be used for the impregnation treatment of copper alloy, cast iron, zinc, sintered goods and magnesium, inter alia.
5. Superior safety
The sealant does not contain any substance prohibited under the European RoHS directive (Restriction of the use of certain hazardous substances in electrical and electronic equipment).
A "porosity" that appears on the surface when the casting is processed. If there is painting in the post-process, it cannot be left as it is. It is difficult to flatten it well even if it is scraped.
We use putty agent to fill the cavities on the surface and make it flat.
This prevents sinking after painting and can be handled as a good product.
Coils are often used in electronic components. It is coated with varnish for insulation and prevention of unraveling.
We can perform varnish impregnation using organic impregnating agents.
Resin impregnation( Surface treatment / Other surface treatment ) |
Company name | SUTAI (THAILAND) CO., LTD. | Website URL | http://www.sutai.jp/english/index.html |
---|---|---|---|
Street address |
Pluakdaeng Rayong Kingdom of Thailand
[See map] |
Person in charge | 木原 清彰 |
Telephone number | +66-38-950-024 | Fax number | +66-38-950-025 |
Capital | 23,000,000 THB | Employees | 20 |
Annual sales | Unregister | EMIDAS Member Number | 94627 |
Main 3 products |
|
Large | Medium | Small |
---|---|---|
Surface treatment | Other surface treatment | Resin impregnation |
